COHERENT INNOVA

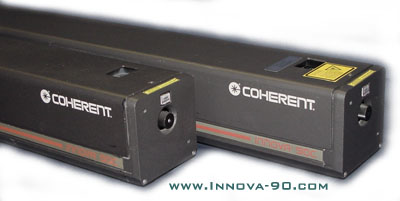

90 ION LASER SYSTEMS Laser
Innovations supports all models of the
Coherent Innova 90 small frame Ion
Laser Systems that the manufacturer no longer
supports, including the Coherent Innova 90C
Ion Laser System. Our years of experience and
technical expertise combine to insure that
we will keep your Innova 90 and Innova 90C laser system running at a
fraction of the cost that you would expect.
Coherent Innova
90 - Small Frame Ion Laser System |
COHERENT INNOVA
90 ION LASER SYSTEMS SERVICED
- Coherent Innova
90-2 Argon Ion
Laser System
- Coherent Innova
90-3 Argon Ion
Laser System
- Coherent Innova
90-4 Argon Ion
Laser System
- Coherent Innova
90-5 Argon Ion
Laser System
- Coherent Innova
90-6 Argon Ion
Laser System
- Coherent Innova
90-K Krypton Ion
Laser System
|
[Return to Top]
Coherent Innova
90 - Small Frame Ion Laser System |
COHERENT INNOVA
90 ION LASER SYSTEMS AVAILABLE FOR PURCHASE
- Coherent Innova
90-2 Argon Ion
Laser System
- 2.0
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
- Coherent Innova
90-3 Argon Ion
Laser System
- 3.0
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
- Coherent Innova
90-4 Argon Ion
Laser System
- 4.0
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
- Coherent Innova
90-5 Argon Ion
Laser System
- 5.0
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
- Coherent Innova
90-6 Argon Ion
Laser System
- 6.0
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
- Coherent Innova
90-K Krypton Ion
Laser System
- 1.2
Watt, 1
year /
2000
hour
warranty
on
Innova
Plasma
Tube
|
[Return to Top]
Coherent Innova
90 - Small Frame Ion Laser System |
GENERAL DATA - COHERENT INNOVA
90 ION LASER SYSTEMS
Power supply dimensions |
Laser
head dimensions |
Remote dimensions |
Height |
26.7cm
10.5 in |
Height |
14.6
cm
5.75 in |
Height |
7.6
cm
3.00 in |
Width |
44.5
cm
17.5 in |
Width |
14.6
cm
5.75 in |
Width |
17.8
cm
7.0 in |
Length |
55.9
cm
22.0 in |
Length |
119.0
cm
47.0 in |
Length |
20.3
cm
8.0 in |
Weight |
57.6
Kg
126 lbs |
Weight |
44.5
Kg
98 lbs |
Weight |
.91 Kg
2.0 lbs |
[Return to Top]
Coherent Innova
90 - Small Frame Ion Laser System |
SPECIFICATIONS - COHERENT INNOVA
90 ION LASER SYSTEMSSystem Parameter Specifications |
Bore
configuration |
Tungsten
disk
with one
piece
ceramic
envelope |
Plasma
Tube
Cooling |
Conductively
water
cooled |
Resonator
Construction |
Thermally
compensated
Invar
rod
structure |
Cavity
specification |
Flat
high
reflector,
long
radius
output
coupler |
Output
Polarization |
100:1
Electric
Vector
Vertical |
Cavity
length |
1093
mm
(43.03
in)
1135 mm
(44.68
in) with
Model
934 |
Excitation |
Current
regulated
DC |
Input
voltage |
208
+/- 10%
VAC 50
or 60
Hz, 3
Phase w/GND,
Wye or
Delta
configuration |
Maximum
input
current |
45
Amps per
phase,
Models
90-4,
90-5,
90-K w/
high
field on
magnet |
Maximum
Tube
Discharge
Current:
90-4,
90-5,
90-K
90-6
90-2,
90-3
90-2,
90-3 |
40 Amps
45 Amps
32 Amps,
systems
built
prior to
Oct 15,
1982
35 Amps,
systems
built
after
Oct 15,
1982 |
Water
flow
rate,
minimum |
8.5
liters/min
2.2
gal/min |
Water
incoming
temperature,
maximum |
30oC
(86oF) |
Water
pressure:
minimum
maximum |
1.76
kg/cm2
(25 psi)
3.52
kg/cm2
(50 psi) |
Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.[Return to Top] Performance Parameter Specifications |
Beam
diameter(1) |
1.5
mm
at 1/e2
points |
Beam divergence (half angle)(1) |
0.5
mrad at
1/e2
points |
Long-term
power
stability(2):
Current
Regulation
Light
Regulation |
+/-
3%
+/- 0.5% |
Optical
noise(3,4):
Current
Regulation
Light
Regulation |
+/-
0.2% RMS
+/- 0.2%
RMS |
(1) Measured 514.5 nm at output coupler. (2) Max. peak variation over any 30-min. period after a 2-hr warm-up. (3) Measured with a wide band photodiode driving a resistive load. (4) For 90-K laser, the noise
is 0.3%in both regulation modes and it is
measured at 647.1 nm at specified output
power.
Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.[Return to Top] Output Power (TEMoo) Specifications |
Wavelength(1)
nm
Power
mW
|
90-2 |
90-3 |
90-4 |
90-5 |
90-6 |
90-K |
All
Lines(2) |
2000 |
3000 |
4000 |
5000 |
6000 |
800(3) |
799.3/793.1 |
|
|
|
|
|
30(3) |
752.5 |
|
|
|
|
|
100(3) |
676.4 |
|
|
|
|
|
120 |
647.1 |
|
|
|
|
|
500 |
568.2 |
|
|
|
|
|
150(3) |
530.9 |
|
|
|
|
|
200 |
528.7 |
100(3) |
150(3) |
200(3) |
350(3) |
420 |
|
520.8 |
|
|
|
|
|
70(3) |
514.5 |
800 |
1400 |
1700 |
2000 |
2400 |
|
501.7 |
100 |
200 |
300 |
400 |
480 |
|
496.5 |
300 |
400 |
500 |
600 |
720 |
|
488.0 |
700 |
1000 |
1300 |
1500 |
1800 |
|
482.5 |
|
|
|
|
|
30(3) |
476.5 |
300 |
400 |
500 |
600 |
720 |
|
476.2 |
|
|
|
|
|
50(3) |
472.7 |
|
60 |
120 |
200 |
240 |
|
465.8 |
|
50 |
100 |
150 |
180 |
|
457.9 |
150 |
200 |
250 |
350 |
420 |
|
454.5 |
|
|
50(3) |
120(3) |
140 |
|
406.7-415.4 |
|
|
|
|
|
150(3,4) |
351.1-363.8 |
|
|
100(3,4) |
200(3,4) |
|
|
350.7-356.4 |
|
|
|
|
|
150(3,4) |
(1)
Single line powers for argon lasers are specified at 514.5 and 488.0 nm
only. Other powers indicated are nominal. Single line
krypton lasers are specified at 676.4 and 647.1 only.
(2) All line performance in argon lasers consists of 514.5
and 457.9 lines; krypton consists of 647.1 through 476.2 lines.
(3) Special optics and testing are required.
(4) Powers with high
magnetic field.
Specifications are for reference only and do not constitute warranty specifications on serviced lasers by Laser Innovations.
[Return to Top]
Coherent Innova
90 - Small Frame Ion Laser System |
TECHNICAL QUESTIONS - COHERENT INNOVA
90 ION LASER SYSTEMSPlease send all technical questions to the email address below. [Return to Top]
Coherent Innova
90 - Small Frame Ion Laser System |
CONTACT US Laser Innovations 1150 E. Main Street Santa Paula CA 93060 Tel (805) 933-0015 Fax (805) 933-0042 E-mail:
